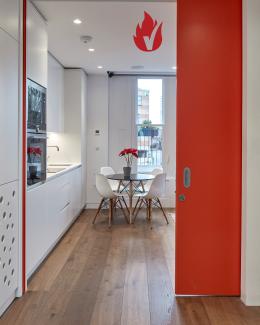

FD30 Fire Rated Kits - Plasterboard lined
PRICES FROM £608+VAT
Standard plasterboard lined frames
Portman can provide both single and double door systems that are certified for use with FD30 door leaves. The Portman FD30 system allows for an approved* single door leaf of up to 2700mm high and 1500mm wide to be installed. This unique assembly opens up new opportunities to create innovative designs and room layouts freedom of choice allows once again for a consistent aesthetic with other doors in the vicinity.
Profiled timber door linings come complete with intumescent fire seals and pre-cut and formed plasterboard sections to be wrapped around the sub-frame, all providing exceptional fire integrity, resulting in a 150mm finished wall thickness.
*Please see below attached assessment or contact the sales office for further information.
***FIRE RATED KITS MUST BE INSTALLED AS PER FITTING INSTRUCTIONS TO COMPLY WITH CERTIFICATION***
Technical information
Instructions
This video provides instructions on how to install our FD30 Fire Rated kits. You can also download the fitting instructions as a PDF:
DIMENSIONS
The maximum door thickness is 44mm. If you need more information about dimensions, please consult our guide.
Single Door
- Wp = Door panel width
- Hp = Door panel height
- W = (2Wp)+20mm
- H = Hp+85mm
- Sp = Wp+31mm
- Op = Wp-95mm
- Oh = Hp-33mm
Double Door
- Wp = Door panel width
- Hp = Door panel height
- W = 4Wp
- H = Hp+85mm
- Sp = Wp+31mm
- Op = (2Wp)-131mm
- Oh = Hp-33mm
Portman's pocket door systems have been designed to provide an unrivaled size and design flexibility to make the most of the space available and create a unique visual statement. Our kits are modular with two heights and three widths as standard. The necessary wall aperture dimensions for the single or double Portman pocket door kits can be derived from. For doors over 2700mm high or 1500mm wide, please contact the sales office
