Telescopic Kits - timber lined
PRICES FROM £769+VAT

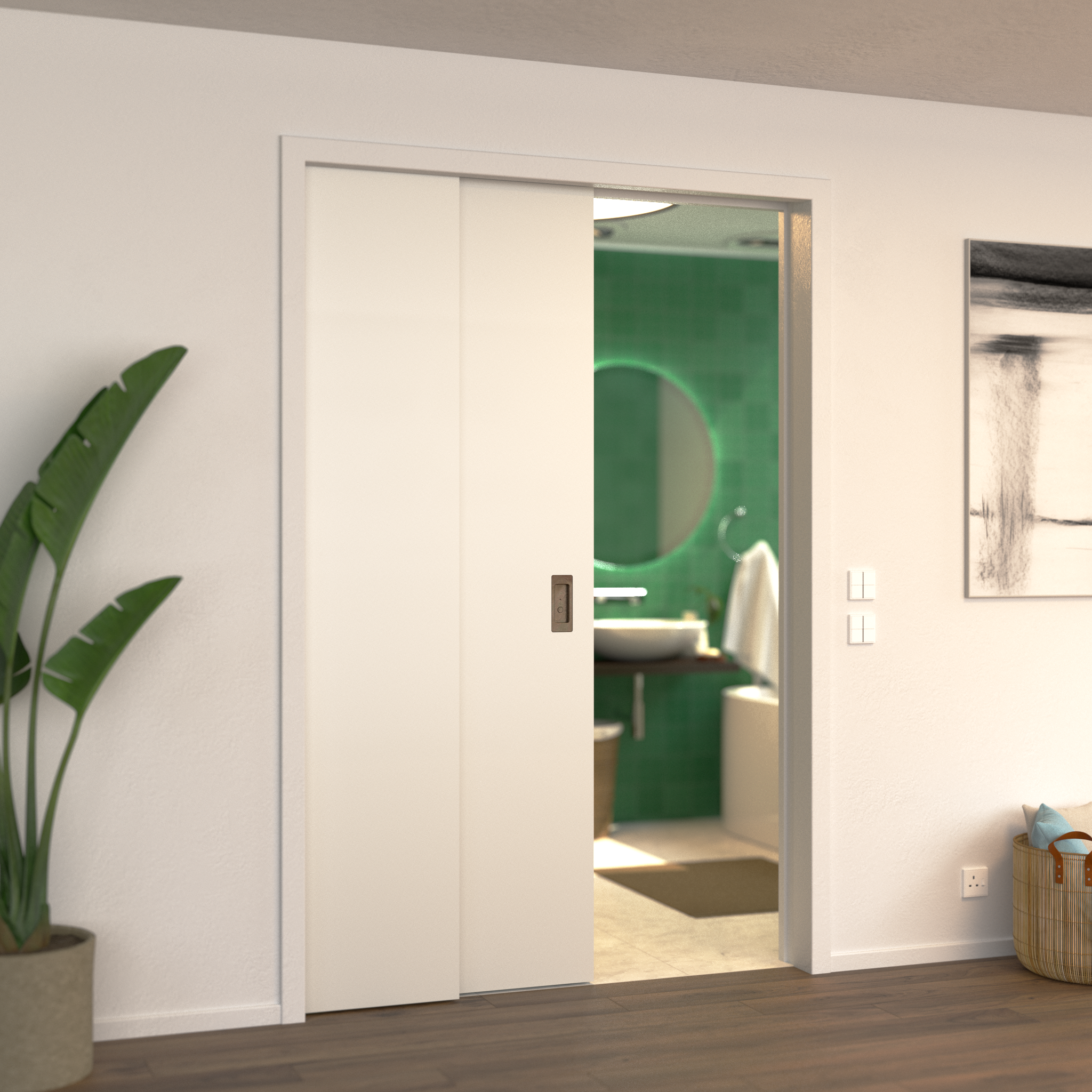

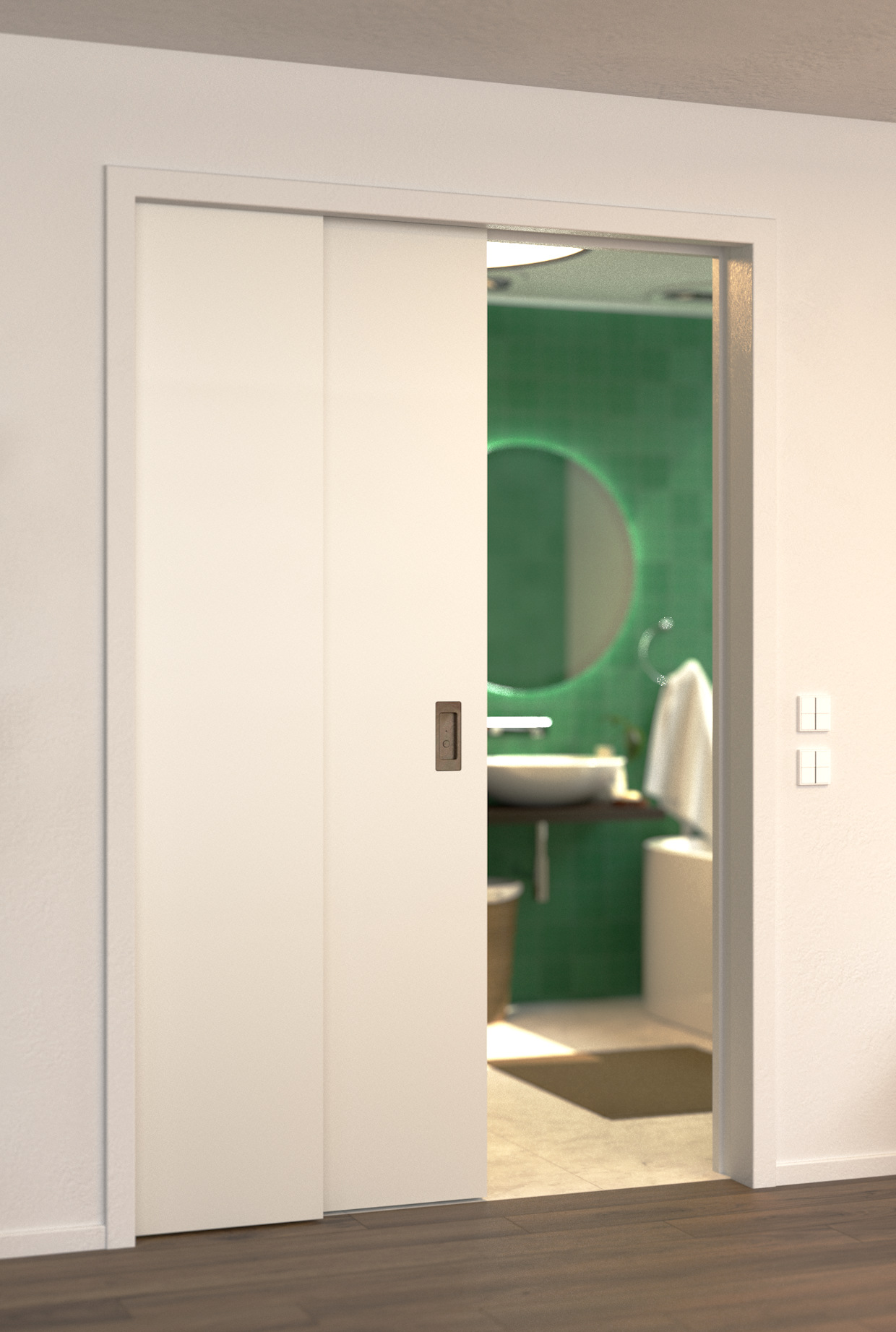

The Portman telescopic doorset effectively allows two door leaves to be concealed within one wall (on the same side) and almost a double span to be traversed.
The door leaves are linked via a toothed belt and pulley system so as the user extracts the first door leaf the second is gently brought along with it and conversely the opposite happens when the doors are concealed back within the wall. The doorset is non handed and timber framing is supplied offset, as only one leaf makes contact with the closing jamb.
Due to the location of the door top components, self closing, soft close and touch latches are not suitable for use with telescopic kits. For aesthetics it is worth considering having a return on the second door leaf to conceal the gap when both doors are in the closed position. For further guidance please contact the sales office.
For doors over 2400mm high the use of the P5700 reinforcing kit is recommended.
Technical information
Instructions
This video provides instructions on how to install our Telescopic (2no doors) kits. You can also download the fitting instructions as a PDF:
DIMENSIONS
The maximum door thickness is 44mm. If you need more information about dimensions, please consult our guide.
Single Door
- Wp = Door panel width
- Hp = Door panel height
- W = (3Wp)+7mm
- H = Hp+85mm
- Sp = Wp+2mm
- Op = (2Wp)-58mm
- Oh = Hp-4mm
Double Door
- Wp = Door panel width
- Hp = Door panel height
- W = (6Wp)-22mm
- H = Hp+85mm
- Sp = Wp+2mm
- Op = (4Wp)-102mm
- Oh = Hp-4mm
Portman's pocket door systems have been designed to provide an unrivaled size and design flexibility to make the most of the space available and create a unique visual statement. Our kits are modular with two heights and three widths as standard. The necessary wall aperture dimensions for the single or double Portman pocket door kits can be derived from. For doors over 2700mm high or 1500mm wide, please contact the sales office
